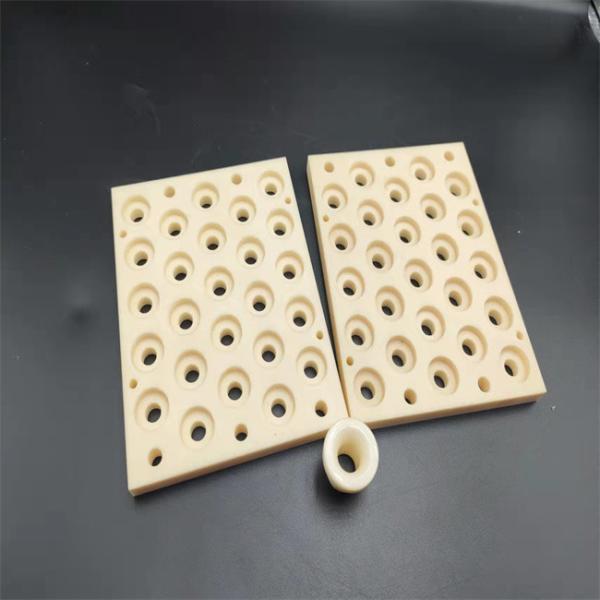

Process high difficulty alumina ceramic parts according to drawings
Description:
Process high difficulty alumina ceramic parts according to drawings.We have 12 senior engineers and more technical personnel. We produce reinforced structure zirconia ceramic rod, ceramic tube, ceramic shaft, ceramic plate, ceramic sleeve, ceramic valve, ceramic plunger, ceramic arm. Products are applicable to instruments, medical instruments, watches and electronic products, mills, energy and electric power, machinery and metal, automobile and military and other high-end fields.
Principal characteristic of Process high difficulty alumina ceramic parts according to drawings :
1. Thermal characteristics: heat resistance and thermal conductivity
2. Mechanical properties: high strength and hardness
3. Other features: high electrical insulation, corrosion resistance, high biocompatibility.
Application of Process high difficulty alumina ceramic parts according to drawings :
Ultrafine grinding equipment, fine chemical industry, electronic paste, semiconductor, new energy, nano new materials, medical instruments, precision casting, structural ceramics, refractory materials, electronic communications, sensitive ceramics, petrochemical industry, aerospace, machinery manufacturing, optical fiber connector, battery materials and other high-precision end fields.
Technical Parameters:
| Material | >92% Al2O3 | >95% Al2O3 | >99% Al2O3 | >99.7% Al2O3 | >99.9% Al2O3 |
| Color | white | white | white | white,off-white | off-white |
| Density | 3.45 | 3.5 | 3.75 | 3.9 | 3.92 |
| flexure strength | 340 | 300 | 330 | 390 | 390 |
| compressive strength | 3600 | 3400 | 2800 | 3900 | 3900 |
| elasticity modulus | 350 | 350 | 370 | 390 | 390 |
| impact resistance | 4.2 | 4 | 4.4 | 5.2 | 5.5 |
| Weibull Modulus | 11 | 10 | 10 | 12 | 12 |
| Vickers hardness | 1700 | 1800 | 1800 | 2000 | 2000 |
| coefficient of thermal expansion | 5.0-8.3 | 5.0-8.3 | 5.1-8.3 | 5.5-8.4 | 5.5-8.5 |
| Thermal conductivit | 18 | 24 | 25 | 28 | 30 |
| Thermal stability | 220 | 250 | 250 | 280 | 280 |
| maximum service temperature | 1500 | 1600 | 1600 | 1700 | 1700 |
| 20℃volume resistance | >10ˆ14 | >10ˆ14 | >10ˆ14 | >10ˆ15 | >10ˆ15 |
| dielectric strength | 20 | 20 | 20 | 30 | 30 |
| dielectric constant | 10 | 10 | 10 | 10 | 10 |
What can we do for you?
1. Sample is available.
2. Independent R&D, ISO manufacture, precise quality standards, modern logistics management, and sound marketing strategy.
3. Inquiry replied within 24 hours.
4. Patented products.
5. OEM or ODM is available.
6. Some extra accessories can be supplied.
7. The larger quantity you order,the more competitive prices you'll get.
8. Necessary Certificates can be supplied.
